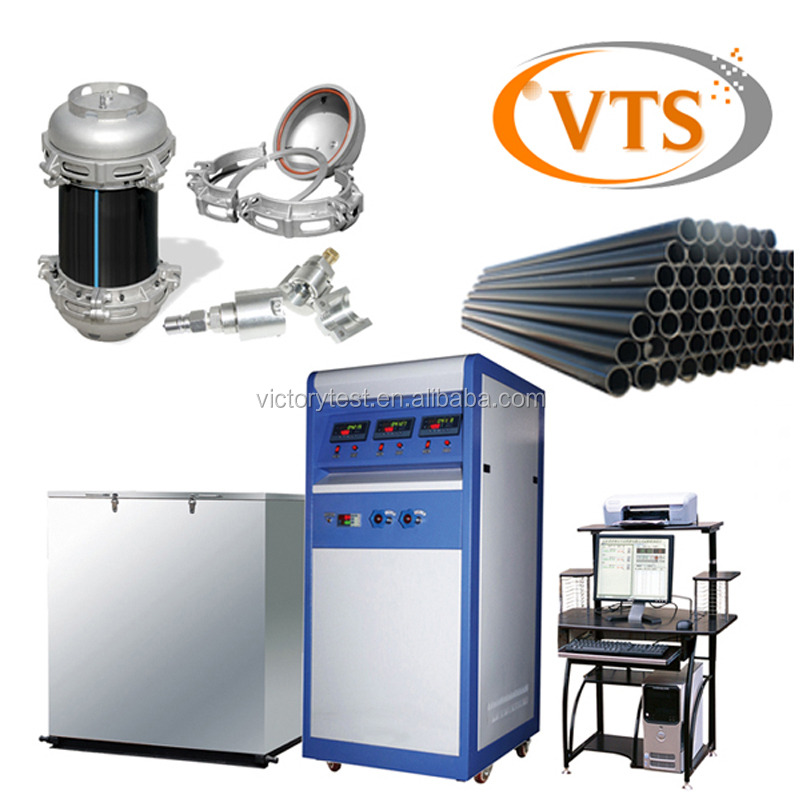

Carbon Steel ISO 1167 Plastic Pipe Hydrostatic Pressure And Burst Tester

Plastic Pipe Hydrostatic Pressure and Burst Tester ISO 1167

(10MPa, 16MPa, 25MPa, 3 stations, room temperature- 95℃,digital +computer double control)

1. Introduction

XGNB Series Hydrostatic/Burst Tester is used to determine the long-term hydrostatic strength and instant blasting of PVC, PE, PPR, ABS and other plastic pipes. It is under the standard of ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

2. Main technical parameters

3. Characteristics

3.1. Double control modes: Each station has a piece of precise pressure micro-control unit and is

controlled by microcomputer. All the parameters including pressure, time and accuracy can be set by

both pressure micro-control unit and pc.

3.2 It can display and store the total 8 parameters such as pressure, time, and status timely. It can store

pressure data for 8760 hours in order to avoid losing data during the system computer offline.

3.3 It can judge both effective and ineffective time parameters automatically. The effective time means

the time of the pressure within the setting pressure.

3.4 In every station, the two solenoid valves (Germany GSR) can work separately according to the test

as well as the accuracy of ±0.0001Mpa.

3.5 One high-accuracy pressure sensor in every station, and the resolution is 0.001MPa.

3.6 Import Pressure station (American Giant), one set each station, performance of the test pressure

pump is better than Chinese made water pressure pump and no need of air pump. It's sound is lower. 3.7 As we adopt distributed control method of microcomputer and PC, microcomputer may go on working

without online or off PC and assure that test data are not lose (the longest 8760 hours).

3.8 Auto release pressure makes test more convenient and safe.

4. Work principle (test three pipes at the same time)

5. End caps

6. Water tank

7. Test software
