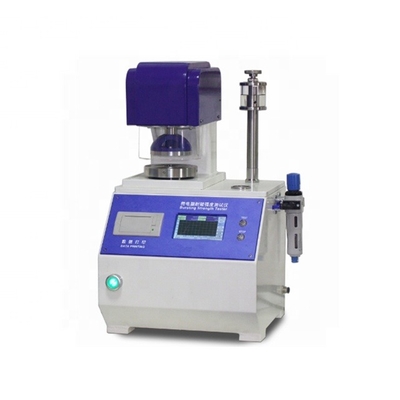

Determination of Strength for Board and Paper Burst Tester for Paper and Board Mullen Burst Testing Machine

1.0 Sets
MOQ
Determination of Strength for Board and Paper Burst Tester for Paper and Board Mullen Burst Testing Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 12 months
Customized support: OEM
Place of Origin: Shandong, China
Marca: Cell Instruments
Model Number: BNP ZNP
Power: Electronic
Brand: Cell Instruments
Function: determination of bursting strength for board and paper
test range: for Paper: 70~1600 KPa for Board: 150 ~5600kpa
Display: HMI touch screen
accuracy: 0.01 KPa
Power supply: 220V
Diaphragm resistance: (9±0.2)mm/(30±5)kPa
Unit Conversion: Kg/cm2, kpa, LBF/in2
Force Accuracy: + / - 0.1% or less
Clamping Force: 100kpa~1200kpa(adjustable)
Informazioni di base
Place of Origin: Shandong, China
Marca: Cell Instruments, Cell Instruments
Model Number: BNP ZNP
Termini di pagamento e spedizione
Packaging Details: plywood carton
Supply Ability: 20 Set/Sets per Week
Descrizione di prodotto
Product Description

Paper and board bursting tester is for the bursting strength of corrugated boards, which is designed in accordance with
ISO2759 'Board-Determination of bursting strength'.


Working principle

Working mechanism

A test piece, placed over a circular elastic diaphragm, is rigidly clamped at the periphery but free to bulge with the diaphragm.
Hydraulic fluid is pumped at a constant rate, bulg ing the diaphram until the test piece rutures. The bursting strength of the
test piece is the maxium value of the applied hydraulic pressure.


Product Paramenters
Test Range
Model ZNP-01 for Paper: 70~1600 KPa
Model BNP-01 for Board: 150 ~5600kpa
Force Accuracy
+ / - 0.1%
Resolution
0.01 KPa
Diaphragm resistance
(9±0.2)mm/（30±5)kPa
Transmit Hydraulic Volume
95±5ml/min (for paper)
175±5ml/min (for board)
Plate Diameter
upper:30.5±0.1mm, lower: 33.5±0.1mm (for paper)
upper:31.5±0.1mm, lower: 31.5±0.1mm (for board)
Unit Conversion
Kg/cm2, kpa, LBF/in2
Manufacturing Technique

* 5 in touch screen operation
* High-strength high-pressure oil circuit sealing system with double seal knob
* Delayed pressurization and pressure relief control
* Equipped with water vapor filter device, protection circuit device stability
* Equipped with calibration and manual pressurization and pressure relief control systems
* The cylinder part, the upper and lower clamping parts are 304 stainless steel
* With safety cover, and power supply anti-interference protection module
* Chinese and English dual language switching
* Units conversion of Kg/cm2、kpa、lbf/in2
* Micro printing
Packing & Delivery

Plywood carton, EVA&wrapping film
