Casa /Prodotti/Tester di forza di scoppio della palla/150kN Geosynthetics Tensile Strength Tester For Tearing Strength And Tensile Strength Testing DW1210 DW1210

150kN Geosynthetics Tensile Strength Tester For Tearing Strength And Tensile Strength Testing DW1210 DW1210

1 Set
MOQ
$18,000.00(1 - 2 Sets) $15,000.00(>=3 Sets)
prezzo
150kN Geosynthetics Tensile Strength Tester For Tearing Strength And Tensile Strength Testing DW1210 DW1210
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 1 year, 1 year
Customized support: OEM, ODM
Place of Origin: Anhui, China
Marca: FYI
Model Number: DW1210
Power: Electronic
Product name: Geosynthetics Tensile Strength Tester
Measuring range: 50kN
Load accuracy: Prior to ±1% of the displayed value
Test stroke: 600mm
Speed range: 0.01~500mm/min, adjustable
Speed accuracy: excelled ±1%
Key word: Geosynthetics Tensile Strength Tester
After-sales service: Engineer available to service overseas
Certificazione: IECEE
Informazioni di base
Place of Origin: Anhui, China
Marca: FYI
Certificazione: IECEE
Model Number: DW1210
Termini di pagamento e spedizione
Packaging Details: Standard packaging of Geosynthetics Strength Tester
Supply Ability: 1000 Set/Sets per Year
Descrizione di prodotto

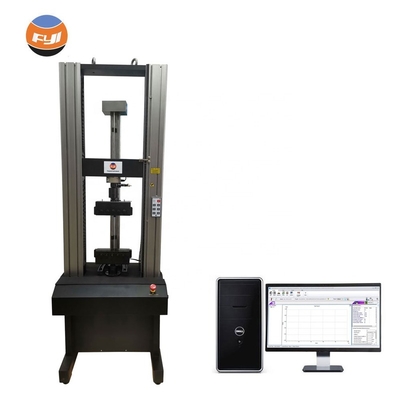

Geosynthetics Tensile Strength Tester DW1210

Product Description

Application of Geosynthetics Tensile Strength Tester

DW1210 Geotextile Strength Tester is used to carry out the tensile strength test, tearing strength test, puncture resistance test, the tensile test for joints/seams and peel strength test, etc., on geosynthetics or geosynthetic-related products.

RELATED STANDARDS

STANDARDS

Tensile

ISO 10319, ISO 10321, ASTM D4595

Tearing

ISO 9073.4, ASTM D4533

Puncture

ISO 12236, ASTM D4833, ASTM D6241

Seam strength

ASTM D4884

Burst

ASTM D3787

Note: this Geosynthetics Tensile Strength Tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

Details & Features

l Wide force range to meet various requirements for testing different materials;

l Double-spaces structure for tension and compression individually, avoiding frequent replacement of accessories to improving efficiency.

l Precise crosshead guidance via steel columns with carriages seated on ball bearings;

l Accurate positioning system with servo motor and ball screw lead support;

l Computer control main machine, easy to operate;

l Universal software for various material;

l Real time display data and curve of on-going test by computer;

l Multiple security protection functions of restrict position controlling, over-load and over-current protection and automatic stop, safe and reliable.

Clamps Pictures of Geosynthetics Tensile Strength Tester

Wide-width strip clamp

Narrow-width strip clamp Puncture clamp

Specifications

KEY SPECIFICATION of Geosynthetics Tensile Strength Tester

l Max. testing force

10KN, 20KN, 50KN, 100KN, 150KN, 200KN

(Please specify before place order)

l Measuring range of force

2% ~100% of the full range

l Measuring accuracy of force

Prior to ±1% of the displayed value

l Speed range

0.5~500mm/min, adjustable

l Speed accuracy

±1%

l Effective width of test space

370mm

l Max. stroke of beam

1100mm

l Max. tensile displacement

800mm

l Max. compression displacement

740mm

l Displacement accuracy

±0.5%

l Power supply

AC220V 50Hz

l Dimension

775×500×1850mm (L×W×H)

l Weight

Approx. 500kg

Company Information

Trade Shows

Our Services

Installation in customer's lab Training in FYI showroom

FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration),30 years focusing on test instruments field,More than 10 years exporting experience.

2.After an order is placed, when to deliver?
Generally about 30 days, If we have inventory, we can arrange shipment within 7 days.
Please be aware that our production lead times depend on specific items and item quantities.

3.What about the warranty with after - sales services?
12 months warranty. Engineers available to sevice yarn dyeing machine overseas,after the warranty, the professional after-sale service team will provide perfect technical support on line,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. our products are widely recognized and trusted by users.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
